UV Coating and Spot Coating

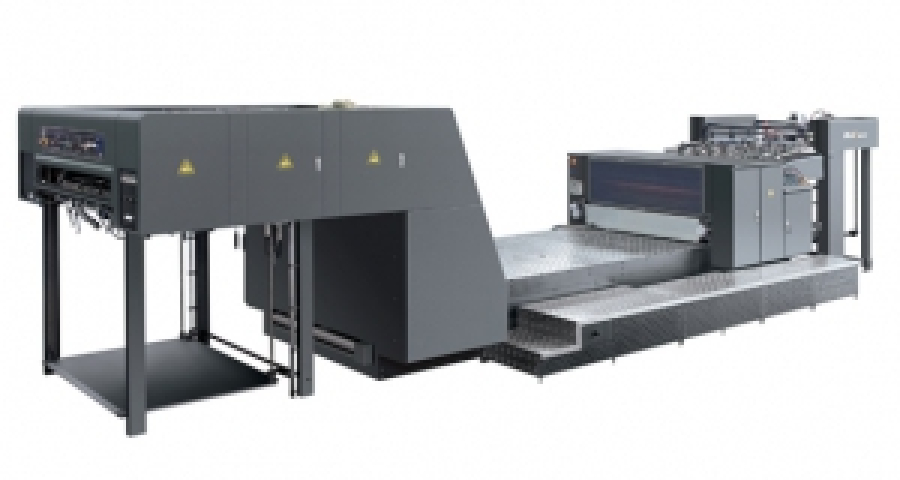

SGJ-UV1100 Automatic UV Spot coating machine
1.1 this machine is used for both flood and spot varnishing on printing works with UV coating and water-based coating (optional), with blanket or fl
1.2 main technical paremeters:
Max sheet size
830×1080mm
Min sheet size
340×400mm
Max coating size
760×1060mm
Paper weight
80-600g/m²
Max speed（UV coating）
5000sph
Total electric consumption
45kw
UV lamp （NO.×power）
3×9.75kw
IR lamp（optional，NO.×power）
15×1.5kw
weight
6.6T
Overall Dimensions
7600×2600×1950mm
Note: the speed is based on the paper size and paper weight
1.3 basic components
〔1〕 Feeding Section
〔2〕 Varnishing Section
〔3〕 IR Drying Section
〔4〕 UV Curing Section
〔5〕 Delivery Section
Additional Info
- New or Used: New Equipment
- Type of Machine: Post-Press
- Brand: Printyoung
