Additional Info

• New or Used: New Equipment
• Type of Machine: Post-Press
• Brand: Printyoung

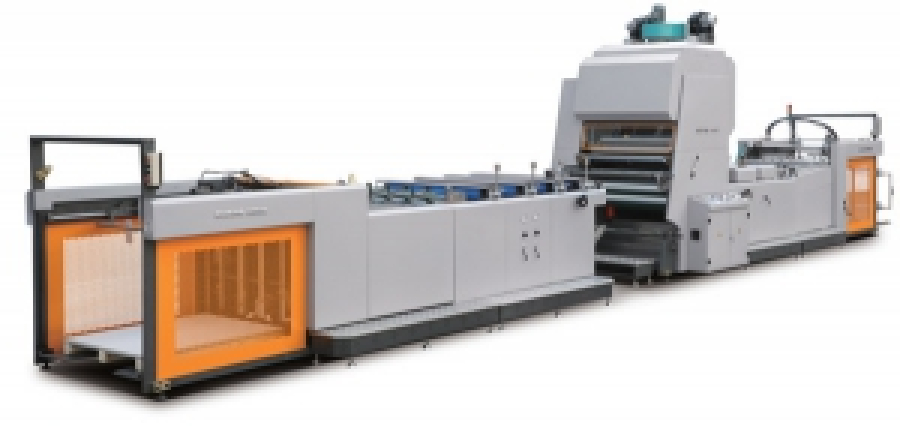

• Features: Application The multi-functional laminator suits water base lamination, oil-base lamination, glueless film lamination and pre-glued film lamination. Configuration Pre-stack paper feeder improves working efficiency; belt conveyor furnished with air aspirator regulates conveyed paper sheets much better. Dusting system clears efficiently dust on paper surfaces and perfects laminating quality so much. Big diameter of mirror laminating roller is equipped with water cycle heating system. Ceramic, which is netlike design, furnished with frequency converter can adjust the speed independently. Film release device is equipped with air expansion shaft and clutch to control film tension. The adjustable air expansion shaft can load and release the film more conveniently. It is easy to operate. Pneumatic paper collector can be adjusted easily upon needs and receive paper sheets regularly. The imported servo motor and Taiwan side lay which can be adjusted keeps machine running smoothly. Technical Parameters Max paper size: 1100x1200mm Min paper size: 300x300mm Laminating speed: 10-65m/min Paper thickness: 80-500gsm Max temperature:120c Max pressure:110kg/cm2 Max pneumatic pressure: 7kg/cm2 Max hydraulic pressure: 2kg/cm2 (water) 6kg/cm2 (pump)
