Additional Info

• New or Used: New Equipment
• Type of Machine: Others
• Brand: Other

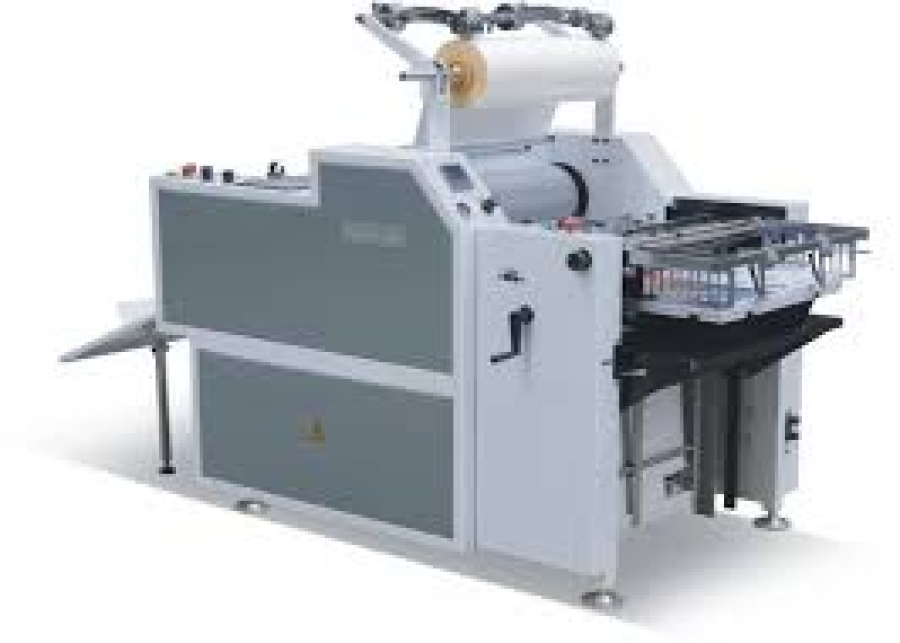

• Features: ZDFM-540 Automatic laminating machine is a pre-coat compounding equipment meticulously researched and developed according to the market demand. This machine possesses the features of compact structure, small area occupancy and convenient operation. 1. Adopt the pneumatic pressure compound. 2. Adopt the automatic paper feeding mechanism and realize once finishing of feeding, laminating and slitting. 3. The paper feeding mechanism is the pre-paper feeding structure, servo motor drive. 4. The edge lapping adopts the back-paper press pre-paper mode, while operating, only input the sheets length, the edge lapping length can achieve the automatic laminating, the edge lapping precision can reach up +--2mm. 5. The cylinder uses the guide heating oil to heat, surface temperature measurement , accurate and uniform temperature. 6. Equip with thin paper anti- curl device, so as to ensure the thin paper compounding no crimp. 7. Equip with the front and back way holing device, which can prevent the paper breaks after cutting or before cutting while holing on the film so as to realize the more stable operation. Maximum sheet size: 540x700mm Minimum sheet size: 200x290mm Laminating speed: 0-20m/min Laminating temperature: 60-130˚ Thickness paper: 120-350g/m₂ Total power: 6kw Weight: 600kg Dimension (Lx W x H): 2300 x 960 x 1400mm Packing size (Lx W x H): 1700 x 1100 x 1350mm
